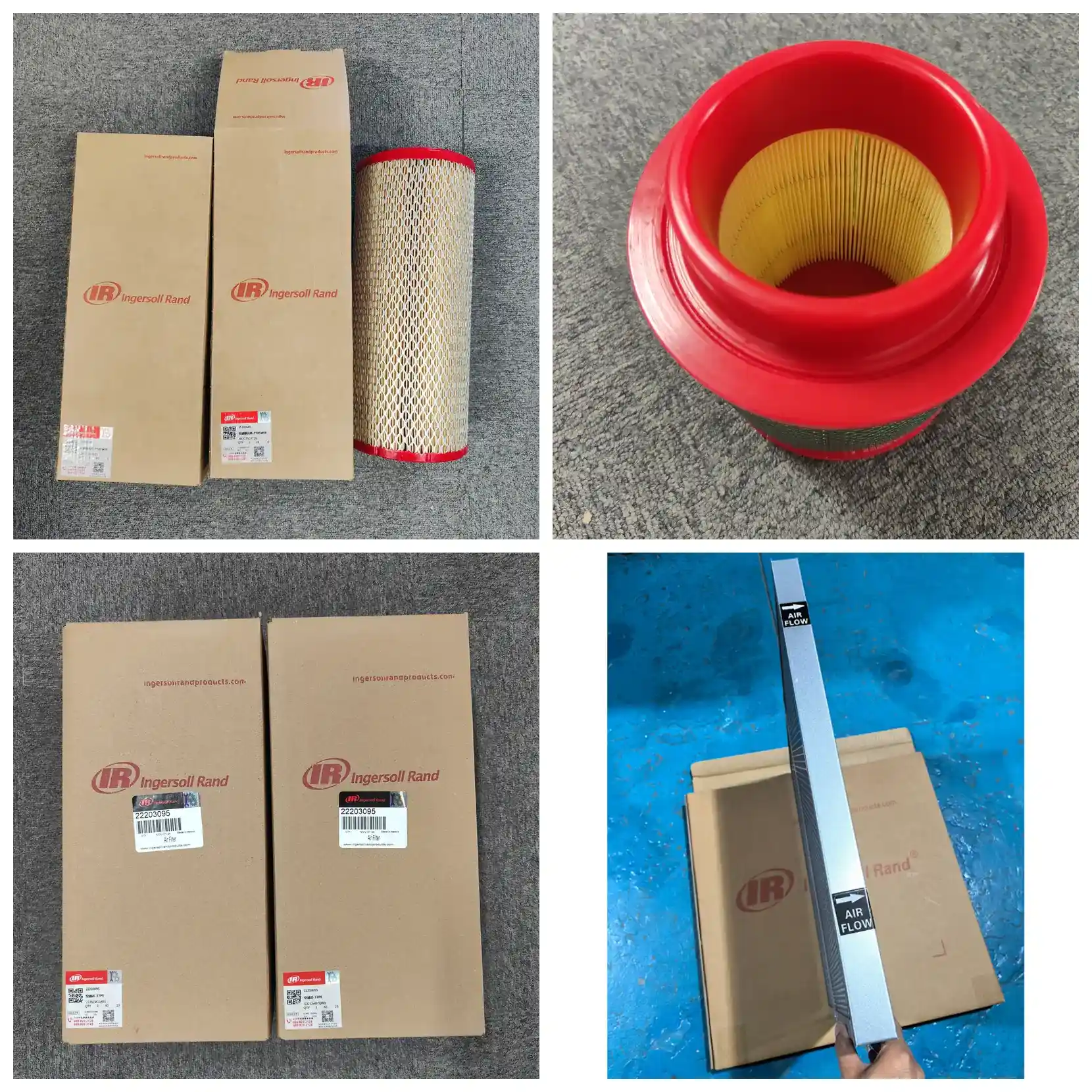

Ingersoll Rand 88111901 Air Filter Element | SSR M37/M45 Compressor Intake
Genuine Ingersoll Rand 88111901 air filter element for SSR M37, M37B, M45, and MM45 screw compressors. F5 synthetic media delivers low resistance and high dust holding capacity to protect the airend rotors. Full range available; matched by serial number.
- Export packaging & documentation support
- OEM / ODM customization available
- Sample and bulk order workflow
Product Overview
The 88111901 air filter element is a genuine Ingersoll Rand intake filter element engineered for SSR M37, SSR M37 B, SSR M45, and MM45 series screw air compressors. Its high-efficiency synthetic fiber media blocks dust, particles, and airborne contaminants from entering the screw airend, protecting the rotors, bearings, and oil seals from wear and extending compressor service life.
As an original intake filtration component for the Ingersoll Rand SSR series, the 88111901 is manufactured to Ingersoll Rand global technical standards. It combines low initial resistance, high dust holding capacity, and straightforward installation, making it a core consumable for routine maintenance of SSR M37–M45 compressors.
Key Specifications
| Item | Value |
|---|---|
| Part Number | 88111901 |
| Brand | Ingersoll Rand |
| Component | Air Filter Element |
| Product Line | CC |
| Product Class | P266 |
| Lead Time | Approx. 150 days (factory order) |
| Unit of Measure | EA (each) |
| Status | Normally supplied |
Filtration Performance
| Parameter | Value |
|---|---|
| Filtration Rating | Approx. 5 μm |
| Filtration Efficiency | Approx. 98% @ 5 μm |
| Filter Class | F5 (medium-efficiency pre-filter, per EN 779 / ISO 16890) |
| Dust Holding Capacity | Approx. 0.30–0.40 kg at rated flow and final resistance |
| Beta Ratio β | β₅ ≥ 100 |
Note: Values above are typical for Ingersoll Rand SSR M37/M45 air filter elements of the same class; refer to factory test data for exact figures.
Flow and Pressure Drop
| Parameter | Value |
|---|---|
| Rated Air Flow | Approx. 6–8 Nm³/min (for 37–45 kW models) |
| Initial Pressure Drop | Approx. 200–250 Pa at rated flow, clean condition |
| Operating Differential | 250–450 Pa |
| Alarm / Final Resistance | Alarm: 550 Pa; final: 650 Pa (replace immediately) |
| Pressure Drop vs. Energy | Each 100 Pa rise in intake loss increases compressor specific power by approx. 0.4% |
Dimensions and Installation
| Parameter | Value |
|---|---|
| Dimensions | Approx. φ150 × φ80 × 200 mm (OD × ID × height, reference) |
| Effective Filter Area | Approx. 1.2–1.5 m² (pleated cartridge) |
| Pleats / Pitch | Approx. 60–80 pleats, pitch approx. 7–8 mm |
| Mounting | Center through-hole, stud-fixed installation |
| Sealing | Polyurethane (PU) end-cap gasket, double-sided seal |
Note: Dimensions are reference values for same-class SSR M37/M45 elements; physical measurement is recommended for confirmation.
Material Construction
| Parameter | Value |
|---|---|
| Media | Synthetic fiber media (imported high-efficiency filter paper) |
| Media Weight | Approx. 100–120 g/m² |
| Support | Inner galvanized metal support mesh, outer protective mesh |
| End Caps | Polyurethane (PU), oil and aging resistant |
| Gasket | PU foam gasket, integrally molded with end cap |
| Bonding | PU adhesive, heat resistant, no debonding |
Operating Conditions
| Parameter | Value |
|---|---|
| Operating Temperature | Continuous: -20°C to 80°C; short-term peak: 100°C |
| Relative Humidity | ≤95% RH, no condensation |
| Collapse Pressure | Overall collapse differential ≥ 3.0 kPa |
| Features | Low resistance, high dust holding capacity, suitable for continuous industrial duty |
Service Life and Storage
| Parameter | Value |
|---|---|
| Service Life | Approx. 4,000 hours (8–12 months) under standard conditions; 2,000–3,000 hours in high-dust environments |
| Shelf Life | 36 months in original sealed packaging, cool dry conditions |
Standards
- ISO 5011 — Inlet air cleaning equipment for internal combustion engines and compressors: performance testing (efficiency and dust capacity)
- ISO 16890 / EN 779 — General ventilation air filter classification
- GB/T 14295 — Air filters
- GB/T 6165 — Test methods for air filter performance (efficiency and resistance)
Maintenance and Installation
Replacement Interval
- Standard conditions: every 4,000 hours or 8–12 months, whichever comes first
- High-dust conditions (mining, building materials, woodworking): every 2,000–3,000 hours
- Replace immediately if visual inspection shows dark media, heavy dust accumulation, or differential pressure reaches 650 Pa
Installation Steps
- Shut down and isolate: switch off main power, apply lockout/tagout (LOTO), confirm the unit has fully stopped.
- Open the filter housing cover: release the retaining nut or clips and remove the cover.
- Remove the old element: pull out the used 88111901 element and check whether the center gasket remains in the housing groove.
- Clean the housing: wipe the inner walls and sealing surfaces with a clean cloth. Never reverse-blow and reuse an old element.
- Inspect the new element: verify part number 88111901, check media for damage, pleats for deformation, end caps for cracks, and gasket for aging.
- Install the new element: slide it onto the center stud, ensuring the gasket seats evenly top and bottom without skew or twist.
- Refit the cover: reinstall the cover and tighten nuts or clips evenly for a gap-free seal.
- Start-up check: start the compressor and listen for air leaks at the filter housing; confirm normal operation.
FAQ
Q1: Is the 88111901 a genuine original part?
A: Yes. The 88111901 is a genuine Ingersoll Rand part manufactured to Ingersoll Rand global technical standards and fits Ingersoll Rand SSR M37/M45 series compressors.
Q2: Which compressors does the 88111901 fit?
A: It fits Ingersoll Rand SSR M37, SSR M37 B, SSR M45, and MM45 series screw compressors. If you are unsure about your model, provide the serial number and we will match it precisely.
Q3: How do I know when to replace the air filter element?
A: Replace when: (1) visual inspection shows dark, heavily loaded media; (2) operating differential pressure reaches the 550 Pa alarm value; or (3) the 4,000-hour or 8–12 month interval is reached.
Q4: What happens if the element is too dirty?
A: A clogged element restricts intake air, reducing discharge volume and raising specific power and energy consumption. In severe cases, dust enters the airend, causing rotor and bearing wear, oil seal degradation, higher oil carryover, and potentially airend failure.
Q5: Can the 88111901 be interchanged with other SSR elements?
A: SSR elements for different power ranges have different dimensions and flow ratings and are not freely interchangeable. Always confirm the correct part number using the compressor serial number.
Compatible Models
| Series | Specific Models |
|---|---|
| SSR M Series | SSR M37, SSR M37 B |
| SSR M Series | SSR M45 |
| MM Series | MM45 |
Compatibility data is sourced from the Ingersoll Rand factory parts system. To confirm your specific model, provide the compressor serial number and we will verify it for you.
Related Parts
| Part Number | Name | Notes |
|---|---|---|
| 89295976 | Air Filter Element | R4–R11 series small screw compressors |
| 88171913 | Air Filter Element UP5-11C-8 | UP5 series small screw compressors |
| 24578023 | Air Filter Element 5–11 kW | R series 5–11 kW |
| 46856837 | Air Filter Element V 15–22 kW | V series 15–22 kW |
| 88111901 | Air Filter Element SSR M37 | This page |
Note: Parameters marked as reference values are typical industry data for same-class Ingersoll Rand SSR M37/M45 air filter elements. Exact dimensions and performance are subject to Ingersoll Rand factory test reports. For 100% accurate matching, provide the complete compressor serial number and we will retrieve the factory parts diagram and confirm the latest supply information.
